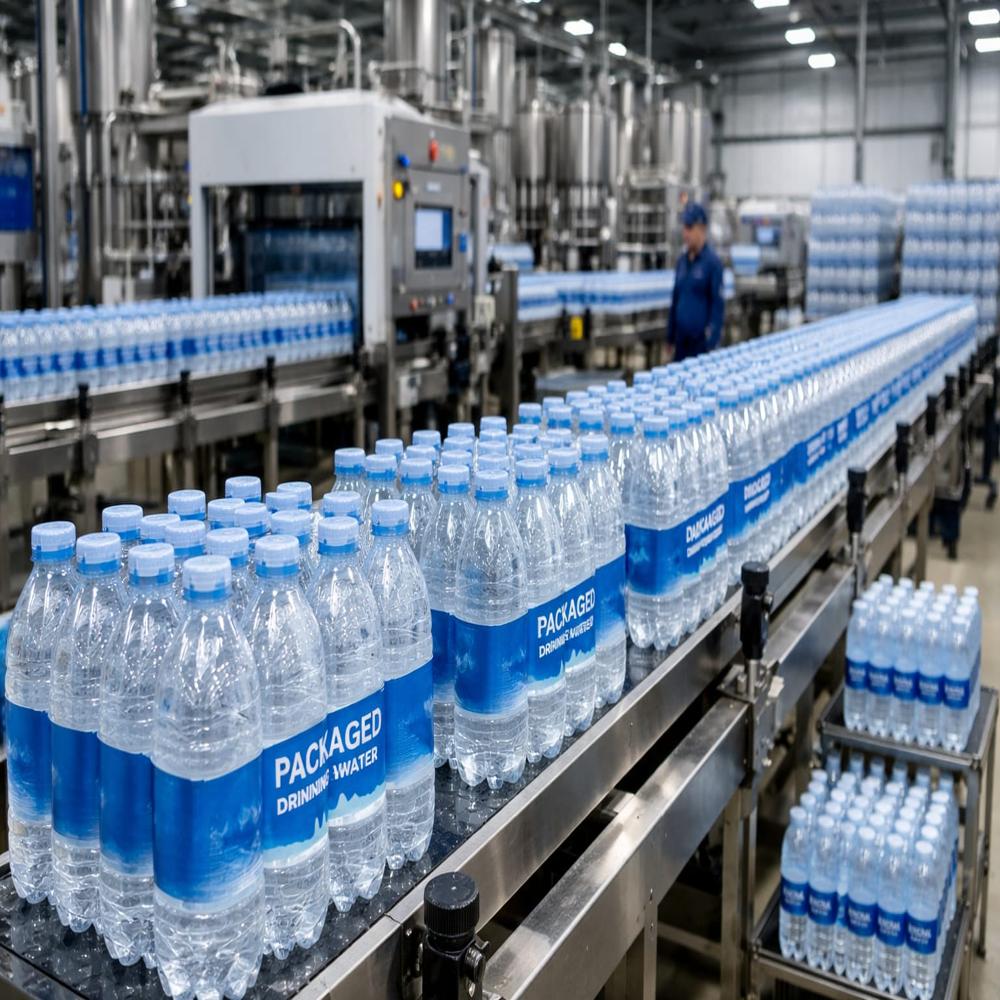

Packaged Drinking Water Plant
3000000.0 INR/Unit
Product Details:
- Frequency 50-60 Hz
- Feature High purification efficiency, robust design, easy maintenance, PLC controlled
- Flow Rate Variable as per plant configuration
- Usage & Applications Bottled Water Plants, Beverages, Industrial/Commercial Water Supply
- Technology Reverse Osmosis, UV Sterilization, Ozonation
- Noise Level Low
- Efficiency (%) >98%
- Click to View more
X
Packaged Drinking Water Plant Price And Quantity
- 1 Unit
- 3000000.0 INR/Unit
- Available as per requirement
- 5 to 7 Stages
- 5C - 45C
- UPVC/SS
- 1000 - 10000 Litres
- 2-4 kg/cm2
- Digital with Automatic Alarms
- Customizable as per client specification
- Food-grade plastic/SS
- UV Sterilization and Ozone
Packaged Drinking Water Plant Product Specifications
- Multimedia/Carbon/Sand Filter
- Electric
- 3 - 10 kW (Depending on capacity)
- 2000-20000 LPH (Litres Per Hour)
- 6.5 - 8.5
- Centrifugal/Booster Pump
- 240 Volt (v)
- Prefabricated/Containerized/Onsite
- < 10 S/cm
- < 1000 S/cm
- 70-80%
- >98%
- Automatic
- Variable as per plant design
- Packaged Drinking Water Plant
- Borewell/RO Water/ Municipal Supply
- Reverse Osmosis, UV Sterilization, Ozonation
- SS
- Low
- Variable as per plant configuration
- Bottled Water Plants, Beverages, Industrial/Commercial Water Supply
- 99.9%
- High purification efficiency, robust design, easy maintenance, PLC controlled
- 50-60 Hz
- Available as per requirement
- 5 to 7 Stages
- 5C - 45C
- UPVC/SS
- 1000 - 10000 Litres
- 2-4 kg/cm2
- Digital with Automatic Alarms
- Customizable as per client specification
- Food-grade plastic/SS
- UV Sterilization and Ozone
Packaged Drinking Water Plant Trade Information
- 2 Unit Per Month
- 10 Days
Product Description

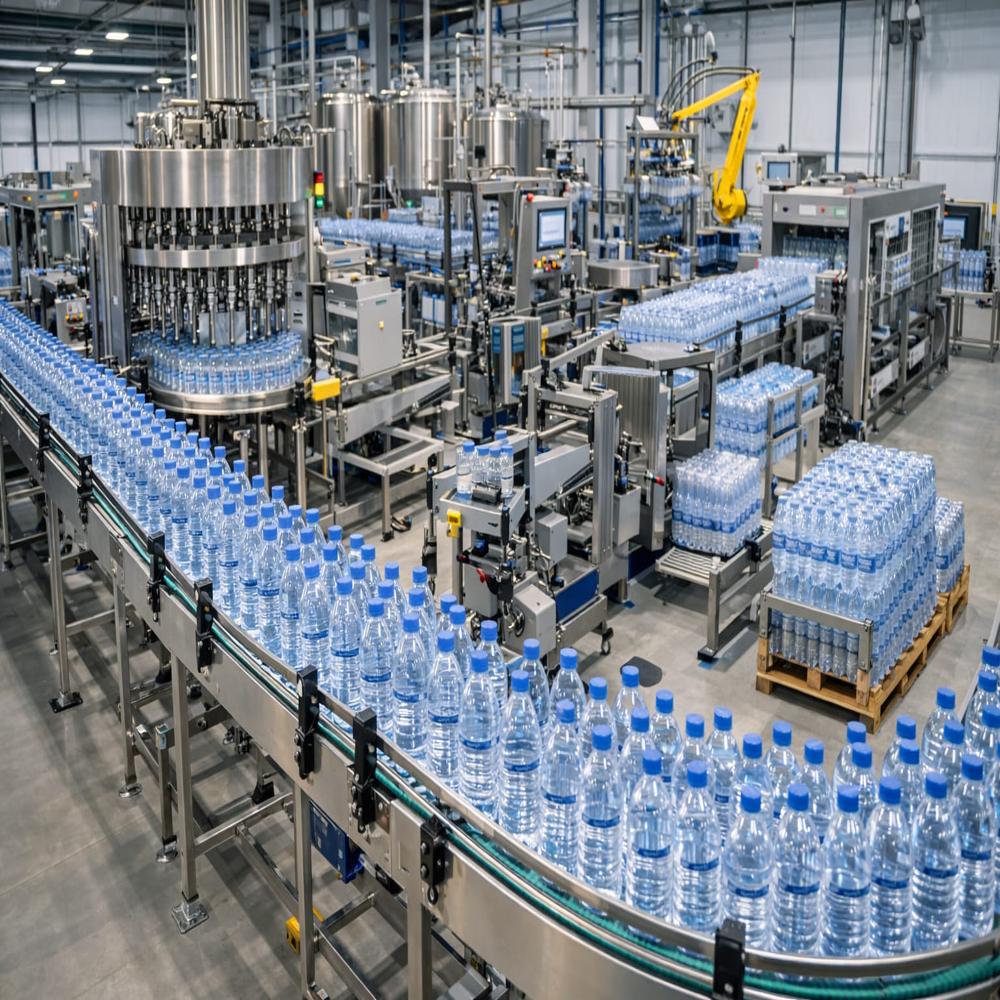

MINERAL WATER BOTTLING PLANTWe Help You to Setup Complete Manufacturing Plant Along with Licenses.
Water Bottling Machine is a packaging machine for Water Bottles from size 200ml to 2000ml.
OUR PRODUCTS
1. Turnkey Mineral Water Plants
2. Turnkey Packaged Drinking Water Plants
3. Pet Bottle Blow Moulding Machines Bottle Filling Machines (RFC)
4. Bottle Group Packaging and Labelling Machines
5. Batch Coding Machines
6. Chemical and Micro Laboratory Setups
7. 5 and 20 Litre Jar Plants Ionization Water Plants
Comprehensive Multi-Stage Filtration
The plant applies up to seven purification stages, beginning with multimedia, carbon, and sand filters, followed by advanced Reverse Osmosis. Ultraviolet sterilization and ozonation are used to eliminate pathogens, ensuring water meets rigorous purity standards. The filtration process removes particulates, microorganisms, and dissolved impurities, delivering water of high clarity and safety.
Robust and Versatile Construction
Engineered using food-grade stainless steel (SS) or plastic, and corrosion-resistant UPVC or SS piping, the plant endures demanding industrial or commercial environments. Prefabricated, containerized, or onsite installations are available, and all systems are customizable to match operational volume, site conditions, and brand requirements. Digital PLC controls with automatic alarms enable hassle-free monitoring.
Efficient Operation and Customization
Automatic operation is supported by an electric, PLC-driven interface, reducing manual intervention and human error. The plant handles flow capacities from 2,000 to 20,000 litres per hour while maintaining energy efficiency. Optional chillers and various pump types further enhance usability. Water after treatment achieves less than 10 S/cm conductivity and optimal pH, making it suitable for sensitive applications.
FAQ's of Packaged Drinking Water Plant:
Q: How does the water purification process function in this packaged drinking water plant?
A: The plant uses a 5 to 7-stage filtration process, including multimedia, carbon, and sand filters, followed by Reverse Osmosis for removing dissolved solids. UV sterilization and ozone treatments are incorporated to eliminate bacteria and viruses, ensuring water purity up to 99.9%.Q: What types of water sources are compatible with this plant?
A: This plant accommodates borewell, municipal supply, or already RO-treated water. Its advanced filtration and disinfection stages are adaptable to varying inlet qualities, ensuring consistent output regardless of source.Q: When is chiller integration recommended for the water plant?
A: A chiller is advised when the application requires temperature-controlled water, such as for bottled water production or beverage processing. The chiller can be added as per specific client requirements during plant customization.Q: Where can this packaged drinking water system be installed?
A: The plant supports flexible installation types including prefabricated, containerized, or onsite setups. It is suitable for deployment in factories, commercial facilities, bottling units, or any location needing high-capacity purified water.Q: What maintenance is required for this plant?
A: Routine maintenance involves checking and replacing filter media, inspecting piping, and ensuring proper operation of the digital control panel and sterilization units. The system's PLC-based digital controls streamline monitoring and maintenance tasks.Q: How does the plant ensure efficient water recovery and low waste?
A: With a recycle rate between 70%-80%, the Reverse Osmosis technology optimizes water recovery, reducing overall wastage. The treated water is stored in food-grade tanks and the remaining reject water can be managed or repurposed as needed.Q: What are the key benefits of using this packaged drinking water plant?
A: Core advantages include a robust, customizable design, automatic and low-noise operation, high purification efficiency, and low maintenance requirements. The system meets international standards for purity and is reliable for bottled water, beverage industries, and commercial supply chains.Tell us about your requirement
