Bottling Plant

Name: Bottling Plant
Brand: PRECISE TECHNOSOFT SOLUTIONS
Price: 3000000.0 INR
Availability: InStock

3000000.0 INR/Unit

Get a Price/Quote

Product Details:

Pump Type Centrifugal / High-Pressure Pump
Power Consumption 3-8 kW
Frequency 50-60 Hz
Water in conductivity 200-800 S/cm
Usage & Applications Mineral Water, Packaged Drinking Water Filling
Efficiency (%) 98% Filtration Efficiency
Ph Level 6.5-8
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Bottling Plant Price And Quantity

Minimum Order Quantity 1 Unit
Price 3000000.0 INR/Unit

Labeling Automatic Labeling Support
Operating Temperature 5C to 45C
Bottle Sizes Supported 200ml to 2L
Control System PLC Controlled
Weight 1300 kg (Approx.)
Dimension Customizable As Per Plant Layout
Pre-treatment UV Sterilizer
Conveyor Material Food Grade PVC
Rinse Type Automatic Bottle Rinser
Filling Heads 2-12 Nozzles Depending on Capacity

Bottling Plant Product Specifications

Noise Level <65 dB
Voltage 240 Volt (v)
Water Source Borewell / Municipal / River
Purity Level 99%
Drive Type Electric
Feature Corrosion Resistant, High Durability, Low Maintenance
Capacity 1000 to 20000 Bottles/Hour
Technology Reverse Osmosis (RO), Multi-Stage Filtration
Water Out Conductivity <10 S/cm
Installation Type Containerized / Skid Mounted
Automatic Grade Full Automatic
Product Type Bottling Plant
Power Consumption 3-8 kW
Pump Type Centrifugal / High-Pressure Pump
Material SS
Filter Type Activated Carbon, Sand, Micron Filter
Frequency 50-60 Hz
Water in conductivity 200-800 S/cm
Power Source Electric
Usage & Applications Mineral Water, Packaged Drinking Water Filling
Volume 500-5000 L
Efficiency (%) 98% Filtration Efficiency
Flow Rate 1000-20000 LPH
Recycle Rate Up to 90%
Ph Level 6.5-8

Labeling Automatic Labeling Support
Operating Temperature 5C to 45C
Bottle Sizes Supported 200ml to 2L
Control System PLC Controlled
Weight 1300 kg (Approx.)
Dimension Customizable As Per Plant Layout
Pre-treatment UV Sterilizer
Conveyor Material Food Grade PVC
Rinse Type Automatic Bottle Rinser
Filling Heads 2-12 Nozzles Depending on Capacity

Product Description

MINERAL WATER BOTTLING PLANT

We Help You to Setup Complete Manufacturing Plant Along with Licenses.

Water Bottling Machine is a packaging machine for Water Bottles from size 200ml to 2000ml.

OUR PRODUCTS
1. Turnkey Mineral Water Plants
2. Turnkey Packaged Drinking Water Plants
3. Pet Bottle Blow Moulding Machines Bottle Filling Machines (RFC)
4. Bottle Group Packaging and Labelling Machines
5. Batch Coding Machines
6. Chemical and Micro Laboratory Setups
7. 5 and 20 Litre Jar Plants Ionization Water Plants

State-of-the-Art Filtration Technology

Incorporating reverse osmosis, activated carbon, sand, and micron filters, this bottling plant ensures water purity levels up to 99%. With a filtration efficiency of 98%, it reliably removes contaminants, while UV sterilization offers an additional purification stage. The multi-stage filtration system handles diverse water sources including borewell, municipal, and river water, making it adaptable to various regions.

Customizable and Efficient Production

The plant supports a wide range of production capacities-bottling between 1,000 and 20,000 bottles per hour with volume flexibility from 500 to 5,000 liters. It accommodates bottle sizes from 200ml to 2L and offers automated labeling and rinsing features. With customizable dimensions and containerized or skid-mounted installation, the plant seamlessly adapts to plant layouts and operational needs.

Durable, Hygienic, and User-Friendly Design

Constructed from food-grade stainless steel and using a PVC conveyor, this bottling plant resists corrosion and ensures lasting durability. The fully automatic system, PLC controls, and electric drive minimize manual intervention and keep maintenance requirements low. Its relatively quiet operation (<65 dB) and intuitive design enhance the user experience and ensure workplace comfort.

FAQ's of Bottling Plant:

Q: How does the bottling plant ensure water purity and quality?

A: The plant uses a multi-stage filtration system, including reverse osmosis, activated carbon, sand filters, and micron filters, to achieve up to 99% water purity. UV sterilization provides added protection against bacteria and microorganisms, while the filtration process consistently delivers high efficiency (98%).

Q: What bottle sizes and production capacities does the plant support?

A: This bottling plant accommodates bottles ranging from 200ml to 2L and can process 1,000 to 20,000 bottles per hour, making it suitable for both small-scale and large-scale beverage manufacturers.

Q: When is a PLC-controlled system beneficial for bottling plants?

A: PLC (Programmable Logic Controller) systems offer precise, automated control over the plant's operations, enhancing production efficiency, reducing manual errors, and ensuring consistent water quality and output. This is especially useful in high-capacity, continuous-operation environments.

Q: Where can the plant be installed, and is the layout customizable?

A: The plant is designed for indoor installation and offers customizable dimensions to fit specific plant layouts. It can be containerized or skid-mounted for ease of transport and installation, adapting to space and operational requirements.

Q: What is the process involved in filling and labeling bottles?

A: Bottles are first automatically rinsed, then filled with purified water through 2-12 adjustable filling nozzles, depending on capacity. Labels are applied automatically, ensuring hygiene and efficiency throughout the entire packaging process.

Q: How does the plant handle different water sources and qualities?

A: The system can process water from borewell, municipal, or river sources, even with varying levels of conductivity (200-800 S/cm). Advanced filtration and treatment units efficiently adapt to the source, maintaining optimal purity and performance.

Q: What are the primary benefits of using this bottling plant?

A: Key benefits include high efficiency, consistent product quality, corrosion resistance, low maintenance, customizable configurations, and automated features that reduce labor requirements. The plant's durable construction and streamlined operation make it a cost-effective solution for beverage manufacturers.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Package Drinking Water Plant' category

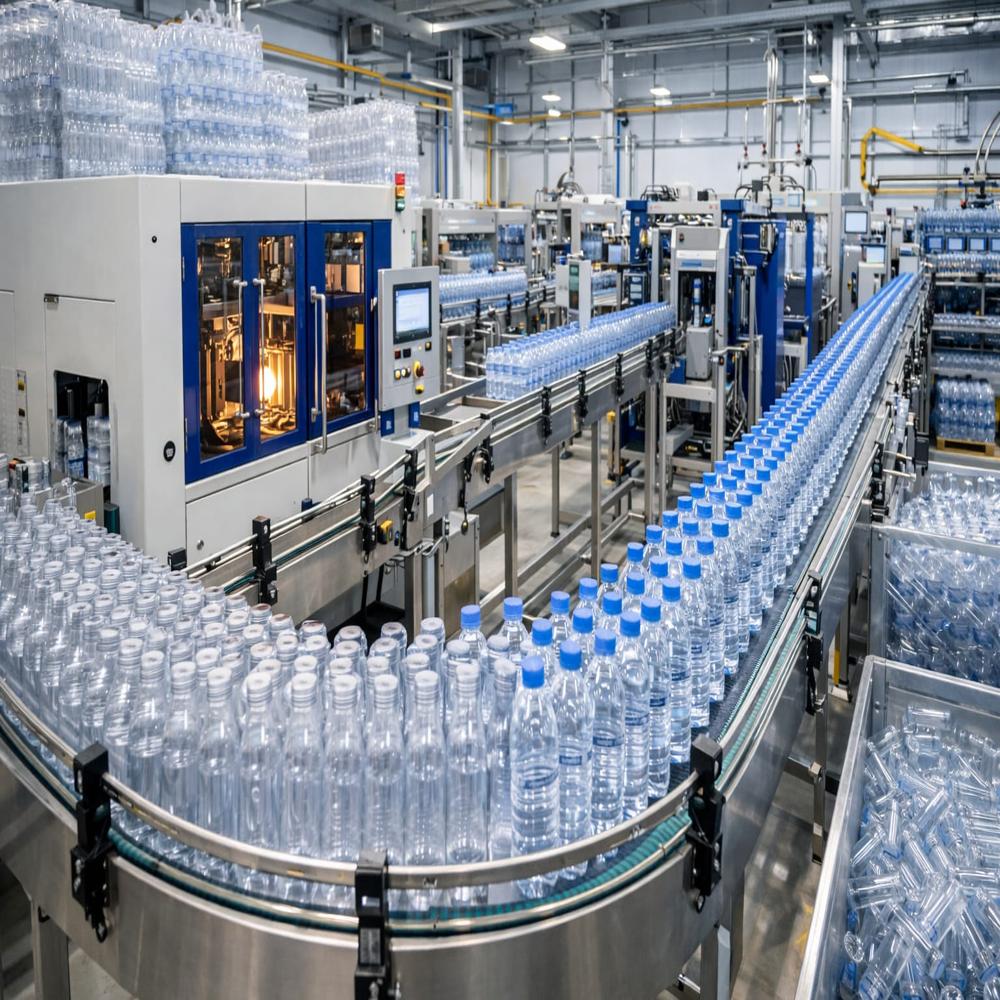

Water Bottle Manufacturing Plant Price : 3000000.0 INR/Unit Minimum Order Quantity : 1 Capacity : 200012000 bottles/hour Drive Type : Other, Electric Motor Voltage : 380 V Automatic Grade : Other, Automatic Material : Stainless Steel Installation Type : Other , Complete Turnkey Project Water Out Conductivity : <10 S/cm Feature : High durability, Corrosion resistance, User friendly Technology : RO + UV + Ozonation Water Source : Other, Borewell/ Municipal Supply Purity Level : Up to 99% Noise Level : <70 dB Ph Level : 6.58.5 Recycle Rate : 95% Flow Rate : 20005000 LPH Efficiency (%) : 90% and above Frequency : 50 Hz Usage & Applications : Drinking Water Filling, Packaging Power Source : Electric Volume : 500 ml to 2 L bottles Water in conductivity : <1200 S/cm Product Type : Water Bottle Manufacturing Plant Filter Type : Multi Grade, Carbon & Micron Filters Pump Type : Centrifugal & Dosing Pumps Power Consumption : 1225 kW
